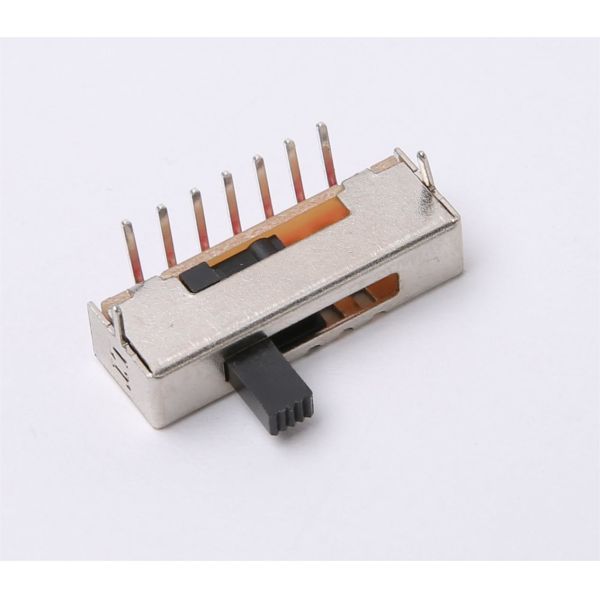

SS15E11 SPDT Slide Switch 1Pole 5 Position Side Slider PCB DIP Soldering Type
Product Description
SS Series Mini slide switch for DC application,SMD or through hole terminals1P2T,1P3T,1P4T, 1P5T, 2P2T ,2P3T functions.
Features:
Mini Type
DIP Soldering
Smooth Sliding Performance
Clear Click Sound
RoHS Complaint
How to Order:
Material and Finish Specifications:
Terminal Base: Phenol Resin Coler Yellow
Terminal:Brass ,Silver plated
Spring Plate: Copper natural
Contact Clip: Copper , Silver Plated
Knob: PA
Frame: CRS, Zinc Plated
What is Slide Switch
A slide switch is an electromechanical device used to control the flow of current in a circuit path. The slide switch uses a slider that slides from the open (off) position to the closed (on) position.The series of devices are driven by sliding mechanical switches. These characteristics include circuit, contact timing, switching function, voltage rating (AC or DC), current rating, and actuator type.
Application of Slide Switches
Sliding switches are most suitable for controlling current in small projects. Slide switches come in many terminal types, including feeders, leads, welded terminals, quick-connect, screw terminals or surface mount technology, blade terminals,and panel mount switches.
Product Specifications
| 1.Electrical Specifications |
| Rated Power | 15 VDC,0.3A |
| Insulation resistance | 100MΩ @ 500V DC |
| Contact Resistance | 100mΩ Max |
| Withstand Voltage | 500V AC for 1 Minute |
| 2.Mechanical Specifications |
| Operation Force | 250±100gf |
| Switching Life Cycle | Unloading 15-18 cycles per minute,10,000 cycles Min. |
Our Services
1. Accept customization to meet all your needs
2. Offer 24 hours online service to reply your inquiries
3.Strong R&D support for technical issues
4.Accept lower MOQ and Flexible lead time
FAQ
1.Q: Are you a factory or a trading company?
A: We are the manufacturer of foot switch......
2.Q: Can you do OEM/ODM?
A: Yes, both OEM and ODM services are acceptable,we can also print your logo and make your packaging according to your requirements.
3.Q: How is your product quality?
A: We always put emphasis on the quality of our product. Our product are 100% tested and inspected before shipment.
4.Q: How do you ship the goods?
A: The products will be sent to you by optional shipping service, such express, air cargo, sea transportation.
