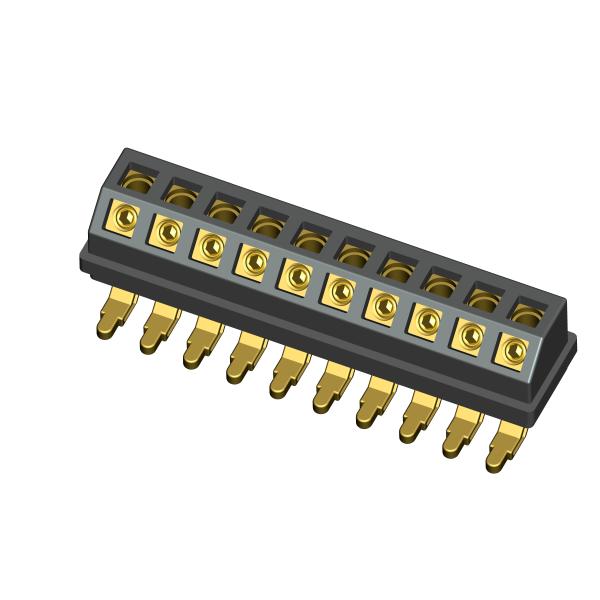

PCB Insert Soldering Barrier Terminal Block 10 Position BT10-002A

Name: PCB Insert Soldering Barrier Terminal Block 10 Position BT10002A
Brand: SANNI
Price: 1.5 USD

Brand Name : SANNI

Model Number : BT10-93

Place of Origin : China

MOQ : 1000pcs

Price : USD1.5~2.5 per pc

Payment Terms : T/T

Supply Ability : 10000pcs per Month

Delivery Time : 25 working days

Packaging Details : 150pcs per Carton box,

Model NO. : BT10-93

Brand : RORUDA

Position : 10 Postion

Shape : Rectanglular

PCB Mount : PCB Insert and Soldering

Samples : Free samples with freight collecting ship

Contact Now

BT10-002A 10 Position Panel Barrier Terminal Block For Car Amplifier

Descriptions

Using the terminal blocks is a convenient and economical method for distributing an electrical circuit from a single input source, to several devices in the branch circuit. Thus reducing the total number of wires in your electrical panel and saving your money and time.

Applications of Barrier Terminal Block

Normally used for car amplifier audio signal distributing and power distributing/connecting.

Features of Barrier Terminal Block

Long life and Good Finish Performance

Stable distribution performance

RoHS Compliant

PCB Insert Soldering Barrier Terminal Block 10 Position BT10-002A

Specification of Barrier Terminal Block

1.Electrical Characteristics
Rated voltage:	300VDC
Rated current:	35A
Insulation resistance:	≥1000OHM
Wire range:	12-22AWG with standing
Withstand voltage:	1500V AC/minute
2.Mechanical Characteristics
Torque:	15.7Lb/in
Operating temperatures:	-40°C to 105°C
Installation:	PCB Insertion and Welding

1.Materials & Finish Characteristics
Screw:	Steel , Finish: Nickel plating with Copper underneath
Terminal:	Zinc Alloy, Finish: Tin/Nickel/with Copper underneath or Gold plating
Body:	PBT or PC UL94-V0

FAQ

1.Q: Can I get sample from you?

A: Yes, we can offer free samples for your testing, please contact us freely and tell us which product you need.

2.Q: Can you provide help for technical issues?

A: Yes, we have more than 10 years of R&D in the industry. If you need technical support, please feel free to contact us.

3.Q: Do you accept customization?

A: Yes, customization is acceptable, please contact our sales staffs for details.
